Brand: WIKA

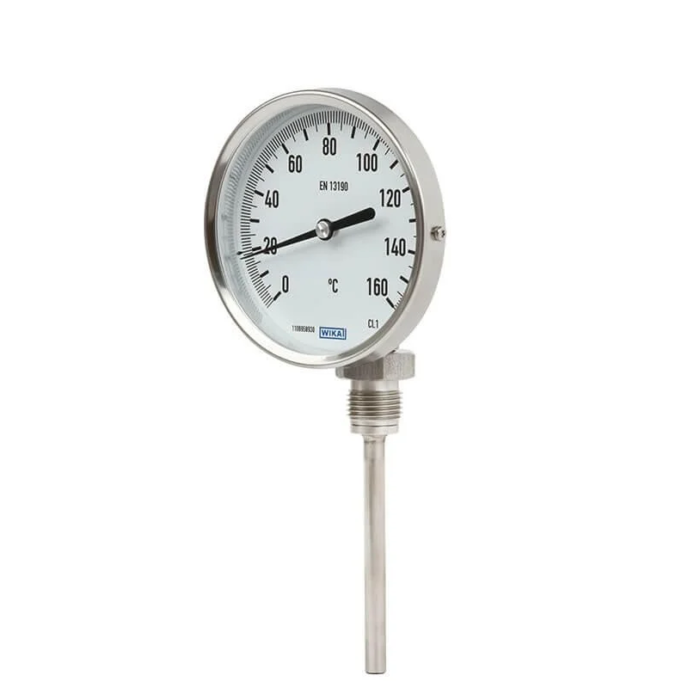

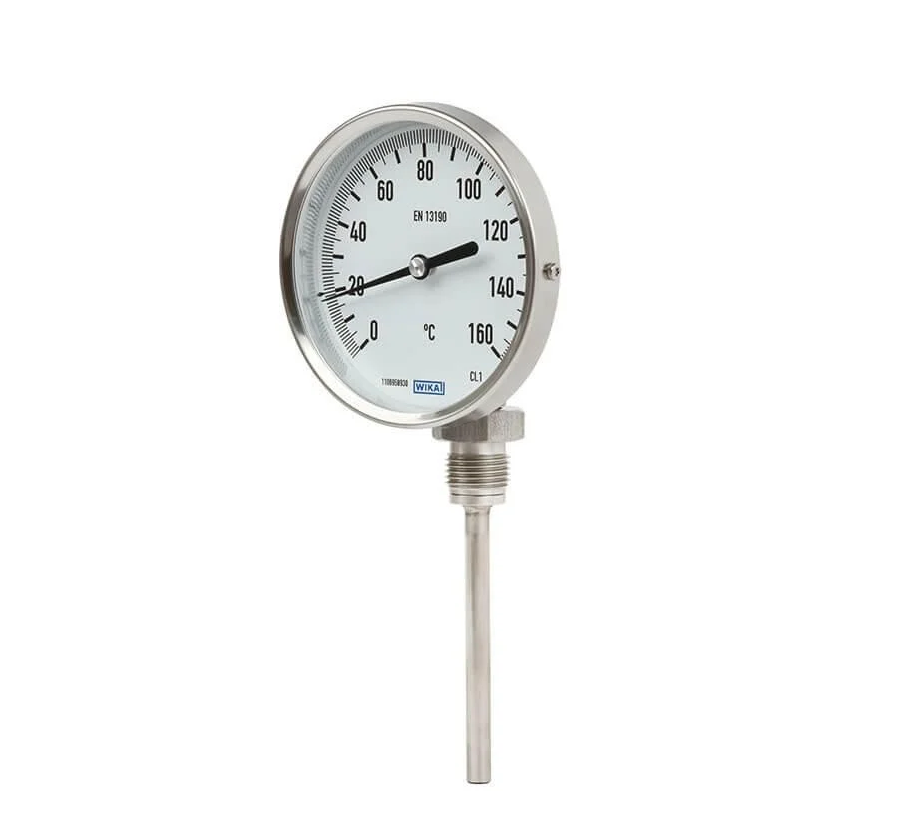

WIKA R52.100 Bimetal Thermometer
24 people are viewing this right now
15 products sold in last 14 hours
Selling fast! Over 14 people have this in their carts
For industrial applications
Specification:
- Nominal Size: 4″ (100 mm)
- Case material: Stainless Steel
- Stem Material: Stainless Steel
- Stem Diameter: 8 mm
- Process Connection: 1/2″ NPT
- Stem Length: 6″ (150 mm)
- Scale Range: 0 … 200°C
- Model: R52.100
- Brand: WIKA
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Applications
- A wide range of applications in machine building, vessel, piping and apparatus construction
- Heating technology
Special features
- Scale ranges from -30 … +500 °C
- Large choice of nominal sizes from 25 … 160 mm
- Case and stem from stainless steel
- 5 different connection designs
Description
The models A52, R52 bimetallic thermometers are the entrylevel model among process thermometers. The target markets of this thermometer are air-conditioning and machine building. Models A52, R52 are manufactured in accordance with EN 13190 and already offer a stainless steel case and accuracy class 1 for nominal sizes > 60 mm.
Especially noteworthy is the large number of stem lengths and nominal sizes. This enables the individual adaptation to the target applications.
