Brand: Martindale

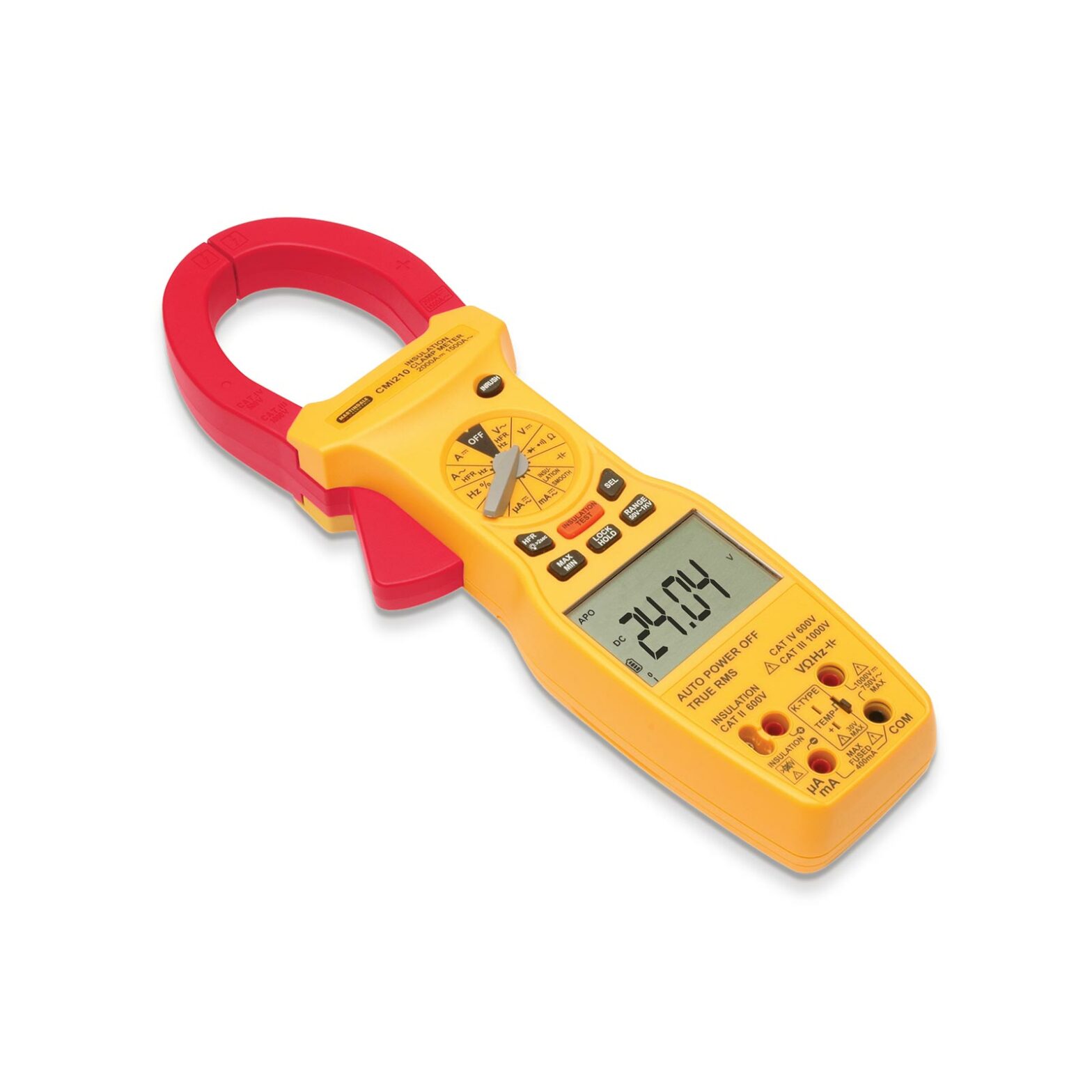

Martindale CMi210 AC/DC TRMS Insulation Clamp Meter
26 people are viewing this right now
3 products sold in last 7 hours
Selling fast! Over 9 people have this in their carts
Specification:
- MPN: MARCMi210
- Brand: Martindale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
CMi210 AC/DC TRMS Insulation Clamp Meter
A unique insulation clamp meter for the installation, testing and maintenance of domestic and industrial installations. This high-specification clamp meter can perform insulation tests to 6G Ohms with 5 test voltages from 50V to 1000V.Â
The clamp provides True RMS measurement of AC current to 1500A and AC voltage to 750V. It will also measure DC current to 2000A and DC voltage to 1000V. The CMi210 has all the same test functions you would expect to find on a high-specification multimeter with the added benefit of temperature measurement.
Key spec
- Current AC: True RMS 0.1A to 1500A (2 ranges)
- Current DC: 0.1A to 2000A (2 ranges)
- Voltage AC: True RMS 0.001V to 750V, autoranging
- Voltage DC: 0.001V to 1000V autoranging (5 ranges)
- Insulation resistance: 300kΩ-6GΩ depending on voltage test
- Capacitance: 0.001µF to 6.6mF (4 ranges)
- Frequency: 0.01Hz to 10MHz (7 ranges)
- Resistance Ranges: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
- Temperature: -50°C to 1300°C (-58°F to 2372°F) K-type probes
- Includes: Batteries, case, TL45 test leads, type K thermocouple and manual
